Obstacle Assault

Overview

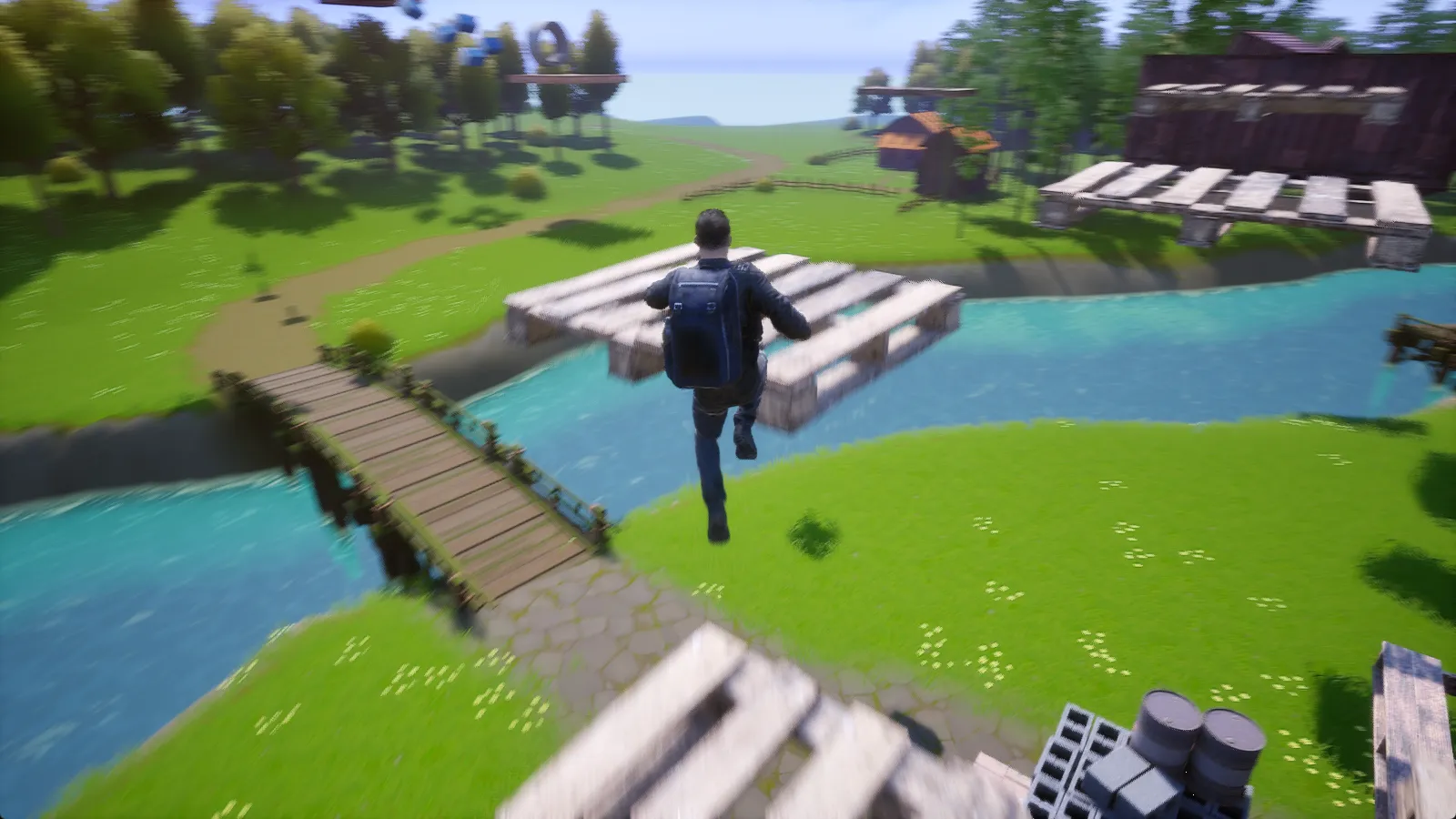

Obstacle Assault is a third-person obstacle course. You work your way across floating pallets, beams, and platforms that slide and spin.

I built it following the GameDev.tv Unreal Engine C++ course. It’s where I learned how Unreal’s C++ side fits together: actors, the tick lifecycle, the reflection system, and handing C++ values to the editor for tuning.

The moving platform

Everything that moves in the level is one C++ class, AMovingPlatform. Each instance is configured in the editor with a velocity, a travel distance, and a rotation speed. The movement logic, with logging trimmed:

void AMovingPlatform::MovePlatform(float DeltaTime)
{
    DistanceMoved = GetDistanceMoved();

    if (DistanceMoved >= MoveDistance)
    {
        // Snap to the exact endpoint before reversing, so small per-frame
        // overshoots don't accumulate into drift over time.
        FVector MoveDirection = PlatformVelocity.GetSafeNormal();
        FVector NewStartLocation = StartLocation + MoveDirection * MoveDistance;
        SetActorLocation(NewStartLocation);
        StartLocation = NewStartLocation;

        PlatformVelocity = -PlatformVelocity;
    }
    else
    {
        SetActorLocation(GetActorLocation() + PlatformVelocity * DeltaTime);
    }
}

The simple version, “reverse when you’ve gone far enough”, drifts, because a platform always overshoots by a frame’s worth of movement. Snapping to the exact endpoint before reversing keeps every platform on its path, however long the level runs.

What’s next

This is v0.1. I’m planning to keep building on it with:

• Music and sound effects
• New mechanics beyond moving and rotating platforms
• More levels
